This full color super bright LED contains red green and blue LEDS housed in a single 5mm epoxy package . They are available with water clear lenses . |
| Features : | ||
 |
High Intensity illumination | |
|
Hight ON/OFF contrast | |
|
Low power consumption | |
|
Fast turn ON/OFF response time | |
|
Long life / 100,000 hours | |
| Applications: | ||
|
Audio / Video mixer status indicators | |
|
Full color imaging | |
|
Multicolor indicators | |
|
Multicolor signage | |
| Characteristics | ||||
Absolute Maximum Ratings TA = 25 |
||||
Parameter |
Symbol |
Value |
Units |
|
| Continuous Forward Current | IF |
20 |
mA |
|
| Peak Forward Current | IFM |
50 |
mA |
|
| Reverse Current ( VR=5V ) | IR |
10 |
uA |
|
| Reverse Voltage | VR |
5 |
V |
|
| Power Dissipation | PD |
100 |
mW |
|
| Operating Temperature Range | TA |
-40 to 85 |
|
|
| Storage Temperature Range | TSTG |
-40 to 85 |
|
|
| Lead Soldering Temperature (5 sec) | TSOL |
260 |
|
|
| Optoelectic Characteristics : SUPER BRIGHT RED | |||||
Parameter |
Symbol |
Max |
Typ |
Unit |
Test |
| Forward Voltage | VF |
2.6 |
2 |
V |
IF=20mA |
| Luminous Intensity | IV |
1200 |
mcd |
IF=20mA |
|
| Peak Emission Wavelength |  |
620 |
nm |
||
| View Angle |  |
30 |
Degree |
||
| Optoelectic Characteristics : SUPER BRIGHT GREEN | |||||
Parameter |
Symbol |
Max |
Typ |
Unit |
Test |
| Forward Voltage | VF |
3.5 |
3.2 |
V |
IF=20mA |
| Luminous Intensity | IV |
5000 |
mcd |
IF=20mA |
|
| Peak Emission Wavelength | |
520 |
nm |
||
| View Angle | |
30 |
Degree |
||
| Optoelectic Characteristics : SUPER BRIGHT BLUE | |||||
Parameter |
Symbol |
Max |
Typ |
Unit |
Test |
| Forward Voltage | VF |
3.6 |
3.4 |
V |
IF=20mA |
| Luminous Intensity | IV |
2000 |
mcd |
IF=20mA |
|
| Peak Emission Wavelength | |
470 |
nm |
||
| View Angle | |
30 |
Degree |
||

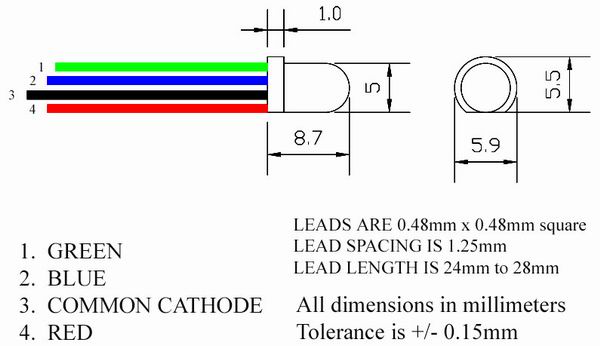

| OUTLINE DRAWING |
 |
Download Specification |
